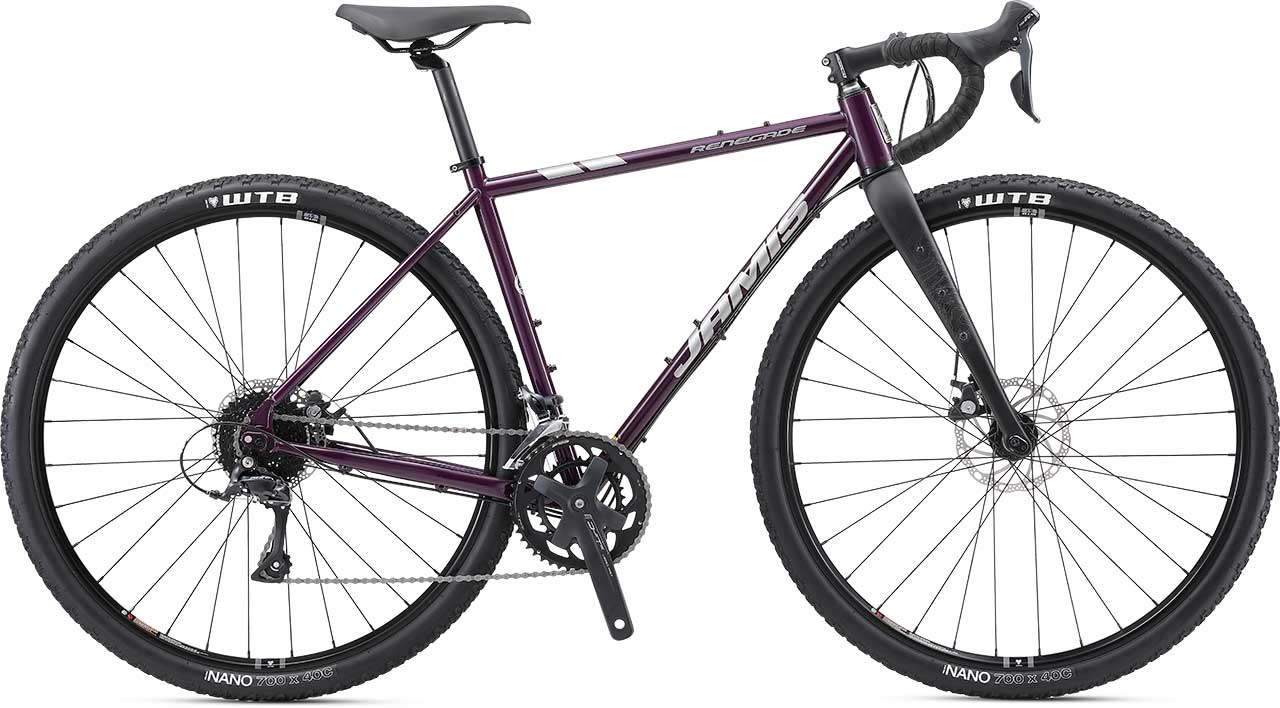

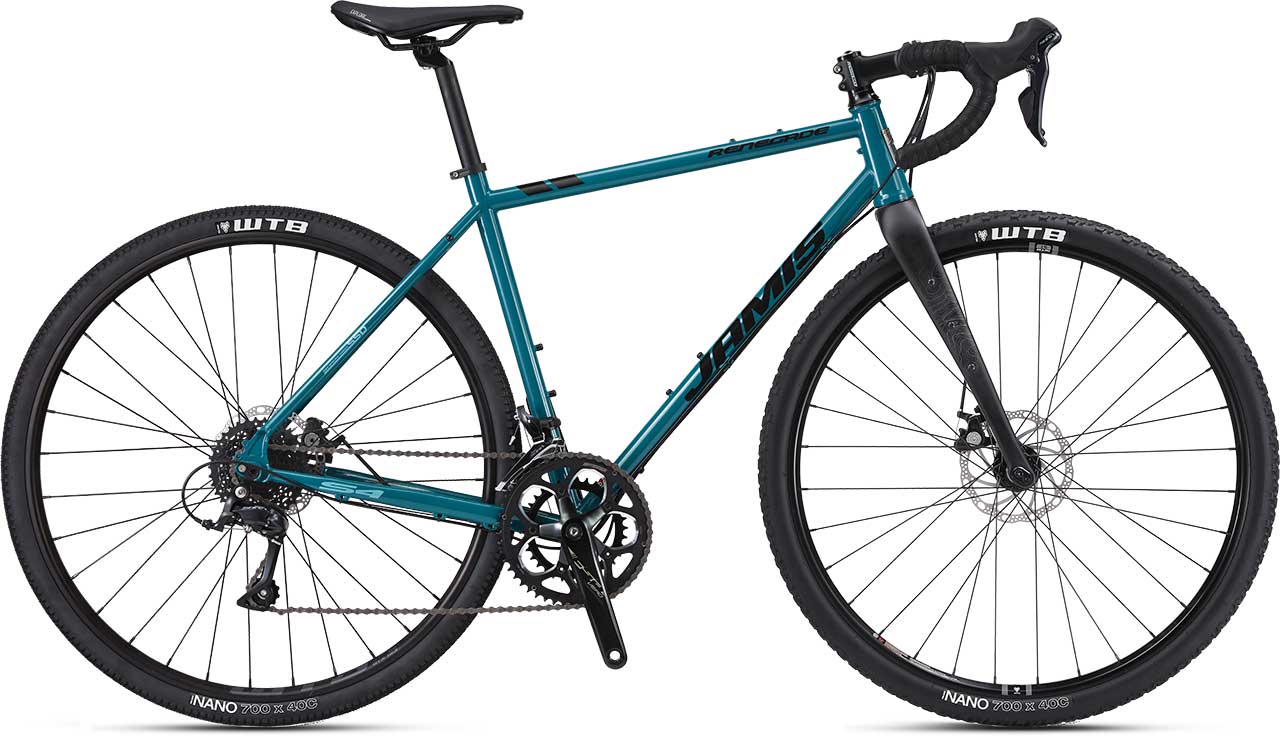

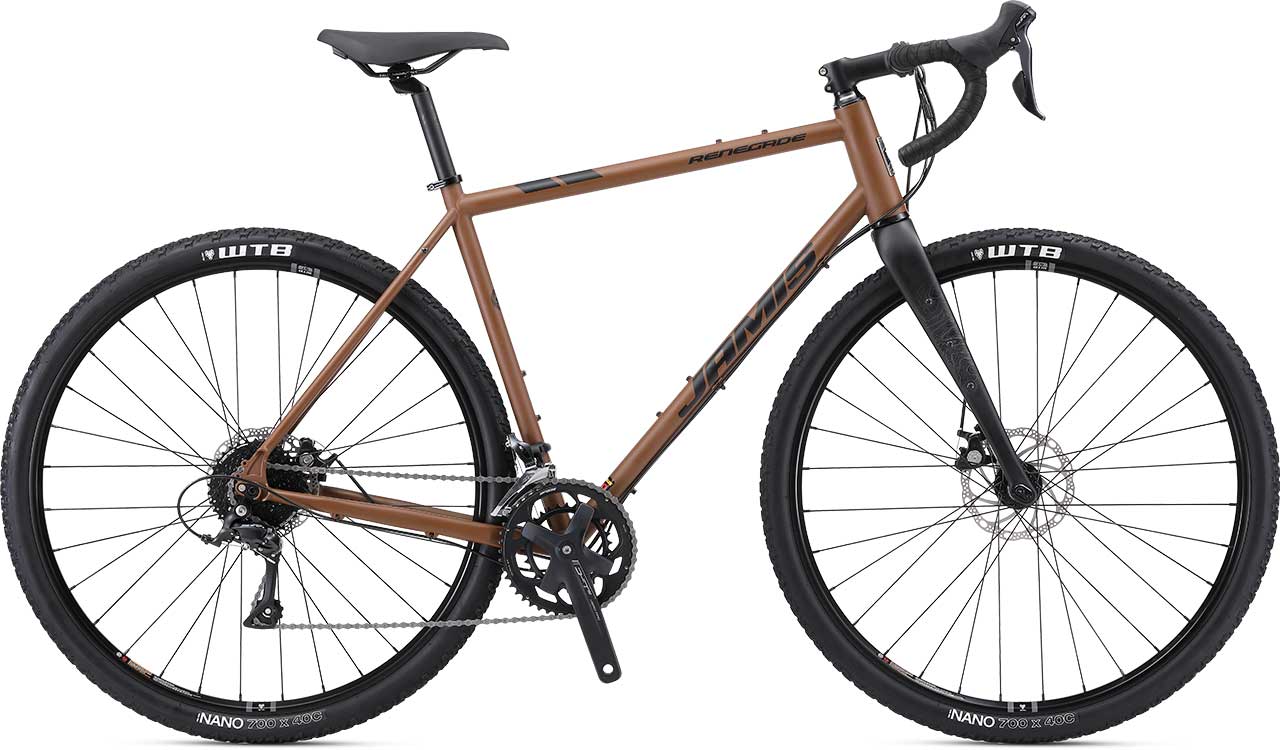

Deep Purple Rare Earth Rip Tide

RENEGADE S4

フレームやフォーク、足回りはRenegade S3と同一ながら、SHIMANO SORAシリーズをベースにコンポーネントを採用したモデル。街乗りからツーリング、バイクキャンピングなどにも楽しむに必要十分な仕様は、サイクリストにアドベンチャーの楽しみを教えてくれる。

ご購入はこちら

OVERVIEW

RENEGADE S4


Price¥192,500（税込価格）

  • Size48, 51, 54, 56, 58cm
  • Frame Reynolds 520 double-butted chromoly tubes, tapered head tube for tapered fork, threaded BB shell, 12mm Thru-axleflat mount chain stay disc brake mounts, internal dropper post ready, 3 waterbottle mounts
  • Fork Monocoque carbon, 12mm Thru-axle, tapered steerer, flat mount disc brakes, lowrider and 3 water bottle eyelets
  • Components Shimano SORA R3000
  • BrakesetTektro Lyra mechanical disc flat mount brake with 160mm wave rotors
  • WheelsWTB ST i23 TCS 2.0 rims, alloy 6-bolt hubs, front 12mm/rear 12x142 thru-axle with Switch Lever
  • TiresWTB NANO, 700 x 40c, 30TPI with protection belt
  • WeightN/A
  • SSD
  • REINOLDS
  • ECO

SPECIFICATIONS

Frame Reynolds 520 double-butted chromoly tubes, tapered head tube for tapered fork, threaded BB shell, 12mm Thru-axleflat mount chain stay disc brake mounts, internal dropper post ready, 3 waterbottle mounts
Fork Monocoque carbon, 12mm Thru-axle, tapered steerer, flat mount disc brakes, lowrider and 3 water bottle eyelets
Headset FSA NO.57/59/CUP, 1.5 - 1 1/8”
Wheels WTB ST i23 TCS 2.0 rims, alloy 6-bolt hubs, front 12mm/rear 12x142 thru-axle with Switch Lever
Tires WTB NANO, 700 x 40c, 30TPI with protection belt
Derailleurs Shimano Sora RD-R3000 GS rear and Sora FD-R3000 front
Shiftlevers Shimano Sora ST-R3000 Dual Control STI, 18-speed
Chain KMC Z9
Cassette SunRace CSM90, 9-speed, 11-34T
Crankset FSA Tempo, 46/30T, 165mm (48), 170mm (51) 172.5mm (54/56)175mm (58/61)
BB Set FSA sealed cartridge, 68 x 110.5mm
Pedals N/A
Brakeset Tektro Lyra mechanical disc flat mount brake with 160mm wave rotors
Handlebar Ritchey Baquiano Comp, 31.8 x 420 (48-51) 440mm (54-56), 460mm (58-61)
Stem JAMIS 3D forged 6061 80mm (48/51), 90mm (54/56), 110mm (58/61)
Tape Jamis suede tape with gel inserts
Seat Post Jamis Road, micro-adjust, 27.2 x 350mm
Saddle Jamis vacuum formed saddle with comfort groove

FIT & SIZING

ジオメトリ表
  • A = SEAT TUBE
  • B = EFFECTIVE TT LENGTH
  • C = HEAD TUBE ANGLE
  • D = SEAT TUBE ANGLE
  • E = CHAINSTAY
  • F = WHEELBASE
  • G = FORK RAKE
  • H = BOTTOM BRACKET DROP/HEIGHT
  • I = HEAD TUBE
  • J = STANDOVER
  • K = STACK
  • L = REACH
MODEL RENEGADE S3
SIZE 48 51 54 56 58 61
cm cm cm cm cm cm
ASEAT TUBE 450 480 510 530 550 570
BEFFECTIVE TT LENGTH 532 547 567 587 604 621
CHEAD ANGLE 71° 71° 71° 71° 71° 71°
DSEAT ANGLE 72° 72° 72° 72° 72° 72°
ECHAIN STAY 435 435 435 435 435 435
FWHEEL BASE 1000 1010 1030 1050 1070 1086
GFORK RAKE 50 50 50 50 50 50
HBB DROP 80 80 80 80 80 80
IHEAD TUBE 80 100 130 162 189 210
JSTAND OVER 731 754 783 808 830 850
KSTACK 527.5 545 575 605 630 650
LREACH 360 370 380 390 400 410
