Rip Tide

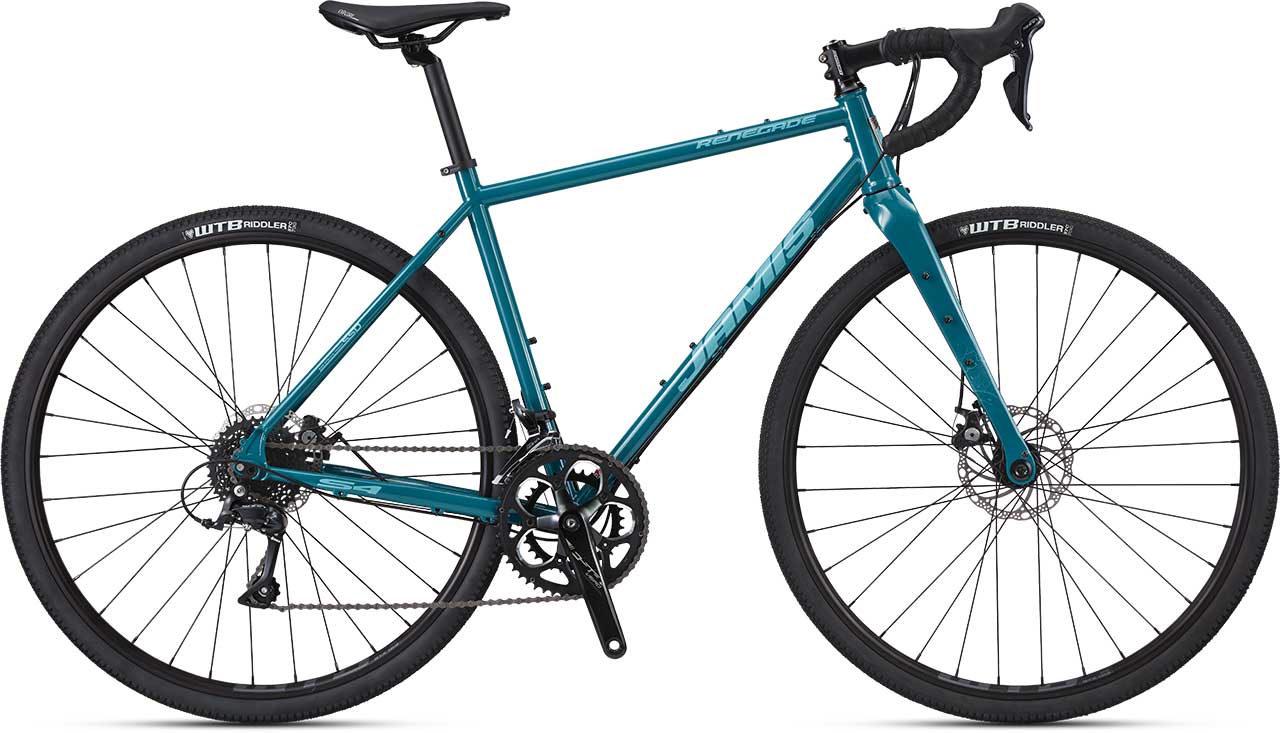

RENEGADE S4

フレームやフォーク、足回りはRenegade S3と同一ながら、SHIMANO SORAシリーズをベースにコンポーネントを採用したモデル。街乗りからツーリング、バイクキャンピングなどにも楽しむに必要十分な仕様は、サイクリストにアドベンチャーの楽しみを教えてくれる。

ご購入はこちら

OVERVIEW

RENEGADE S4


Price¥162,800（税込価格）

  • Size48, 51, 54, 56, 58, 61cm
  • Frame Size Specific Design frame geometry, SST Reynolds 520 double-butted chromoly main tubes, tapered head tube for tapered fork, threaded BB shell, 12mm Thru-axle, flat mount chain stay disc brake mounts, down tube mounted full cable housing, internal dropper post ready, 3 waterbottle mounts, TT mounts, rack and fender eyelets
  • Fork Adventure ECO monocoque carbon composite, 12mm MTS (Modular Thru-axle System) with stainless interface and carbon dropouts, tapered steerer with 1.5” hollow formed crown, flat mount disc brakes with internal cable routing, exposed fender, lowrider and 3 water bottle eyelets
  • Components Shimano SORA R3000
  • BrakesetTektro Lyra mechanical cable actuated disc flat mount brake with 160mm wave rotors and Shimano Sora ST-R3000 levers
  • WheelsWTB ST i23 TCS 2.0 (UST Tubeless Compliant System) disc rims, 32H, Joytec alloy 6-bolt hubs, 14g stainless steel spokes and front 12mm/rear 12x142 thru-axle with Switch Lever
  • TiresWTB Riddler, 700 x 37c, both 30TPI with protection belt,
  • WeightN/A
  • SSD
  • REINOLDS
  • ECO

SPECIFICATIONS

MODEL RENEGADE S4
Price ¥162,800
Frame Size Specific Design frame geometry, SST Reynolds
520 double-butted chromoly main tubes, tapered head tube
for tapered fork, threaded BB shell, 12mm Thru-axle, flat
mount chain stay disc brake mounts, down tube mounted
full cable housing, internal dropper post ready, 3 waterbottle
mounts, TT mounts, rack and fender eyelets
Fork Adventure ECO monocoque carbon composite, 12mm MTS (Modular Thru-axle System) with stainless interface and carbon dropouts, tapered steerer with 1.5” hollow formed crown, flat mount disc brakes with internal cable routing, exposed fender, lowrider and 3 water bottle eyelets
Headset FSA OrbitC-40B Internal, 1.5 - 1 1/8”
Wheels WTB ST i23 TCS 2.0 (UST Tubeless Compliant System)
disc rims, 32H, Joytec alloy 6-bolt hubs, 14g stainless
steel spokes and front 12mm/rear 12x142 thru-axle with
Switch Lever
Tires WTB Riddler, 700 x 37c, both 30TPI with protection belt,
Derailleurs Shimano Sora RD-R3000 GS rear and Sora FD-R3000 front with 31.8mm alloy clamp
Shift levers Shimano Sora ST-R3000 Dual Control STI, 18-speed
Chain KMC Z9
Cassette SunRace Cassette CSM90 9AV 11-34
Crankset FSA Vero, 50/34T, 165mm (48), 170mm (51) 172.5mm (54/56) 175mm (58/61)
BB Set FSA sealed cartridge, 68 x 110.5mm
Pedals N/A
Brakeset Tektro Lyra mechanical cable actuated disc flat mount brake with 160mm wave rotors and Shimano Sora ST-R3000 levers
Handlebar Ritchey Baquiano Comp, 6061 aluminum, 73 reach, 118 ergonomic drop with 12° flare, 420 (48-51) 440mm (54-56), 460mm (56-61)
Stem Ritchey 4-Axis 3D forged 6061 alloy, 70mm (48/51), 80mm (54/56), 100mm (58/61)
Grips Jamis suede tape with gel inserts
Seat Post Jamis Road, micro-adjust, 27.2 x 300mm cromo seat pin
Saddle Justec Saddle 3050
Size 48, 51, 54, 56, 58, 61cm 700c
Color Rip Tide

FIT & SIZING

ジオメトリ表
  • A = SEAT TUBE
  • B = EFFECTIVE TT LENGTH
  • C = HEAD TUBE ANGLE
  • D = SEAT TUBE ANGLE
  • E = CHAINSTAY
  • F = WHEELBASE
  • G = FORK RAKE
  • H = BOTTOM BRACKET DROP/HEIGHT
  • I = HEAD TUBE
  • J = STANDOVER
  • K = STACK
  • L = REACH
MODEL RENEGADE S4
SIZE 48 51 54 56 58 61
cm cm cm cm cm cm
ASEAT TUBE 452 472 502 524 544 566
BEFFECTIVE TT LENGTH 521 536 554 572 589 604
CHEAD ANGLE 71° 71° 71.5° 71.5° 72° 72.5°
DSEAT ANGLE 73° 73° 73° 73° 73° 73°
ECHAIN STAY 427 427 430 430 430 435
FWHEEL BASE 996 1021 1030 1045 1054 1069
GFORK RAKE 50 53 53 53 50 50
HBB DROP 53.5 73.5 72 72 70.5 70.5
IHEAD TUBE 132 109 136 166 191 210
JSTAND OVER 728 748 779 804 828 849
KSTACK 525 545 575 605 630 650
LREACH 360 369 378 387 396 405
REAR OLD 142 142 142 142 142 142
