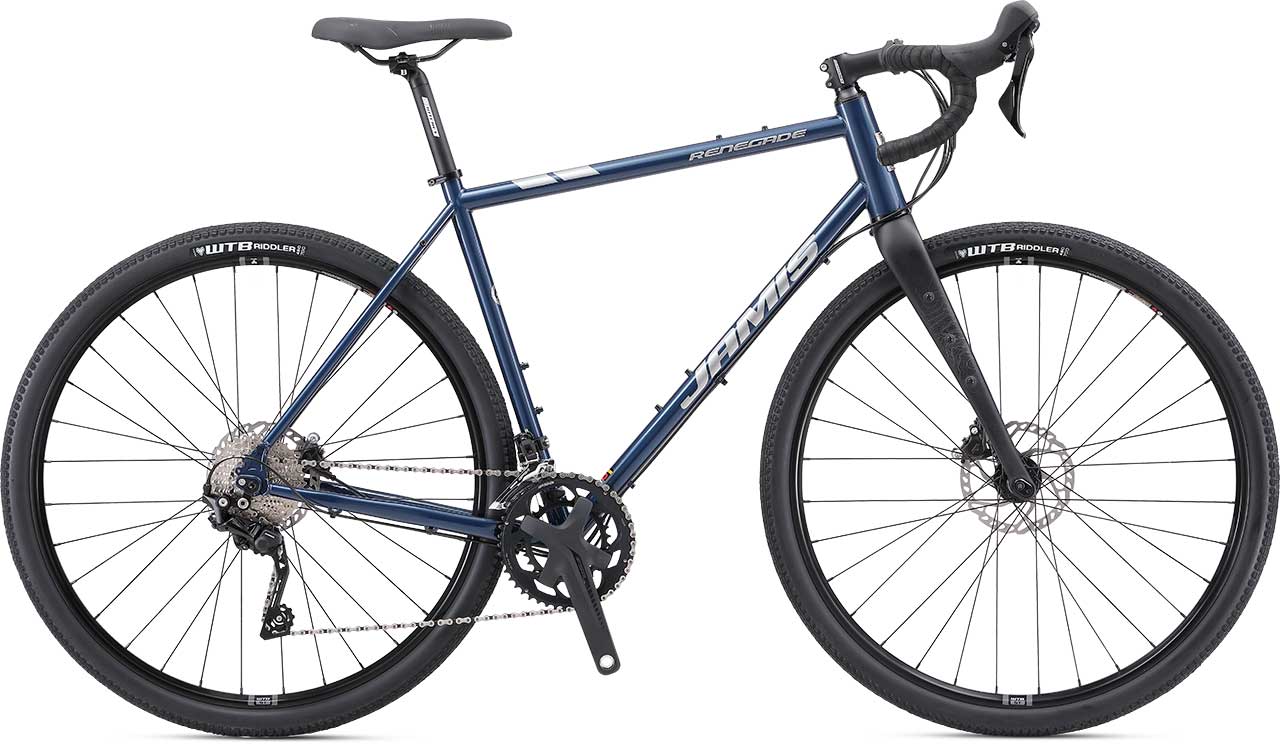

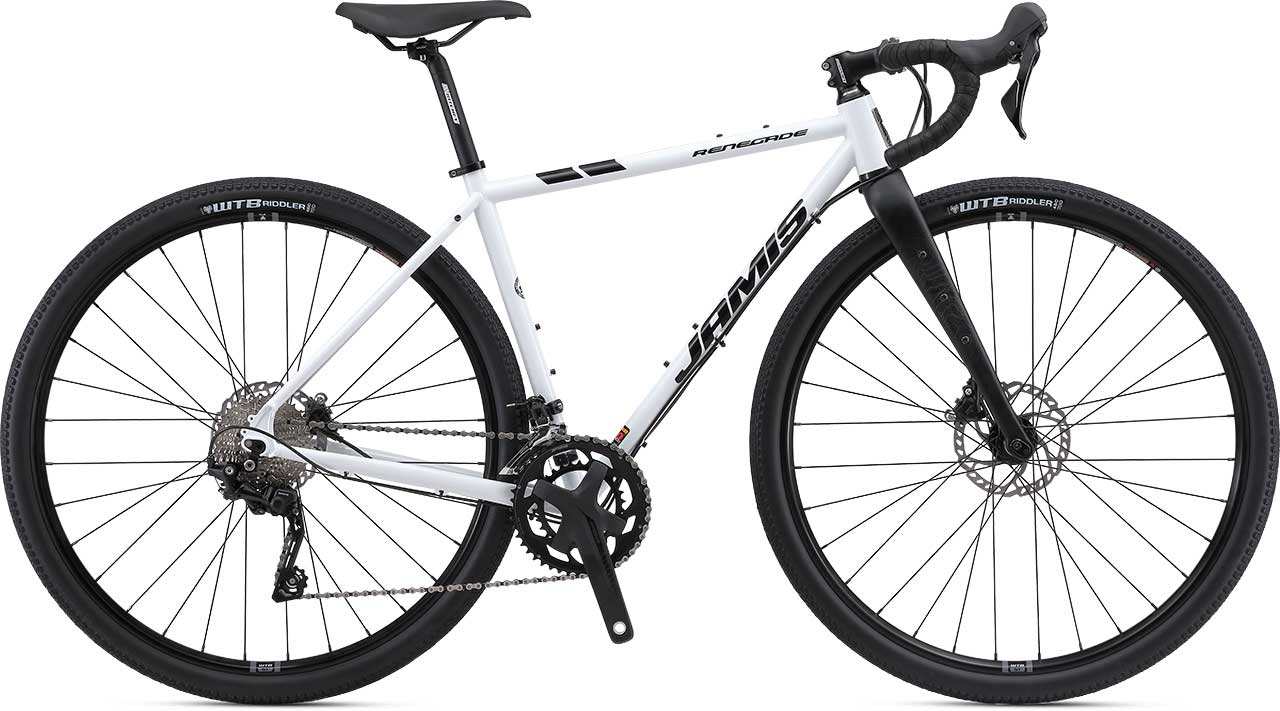

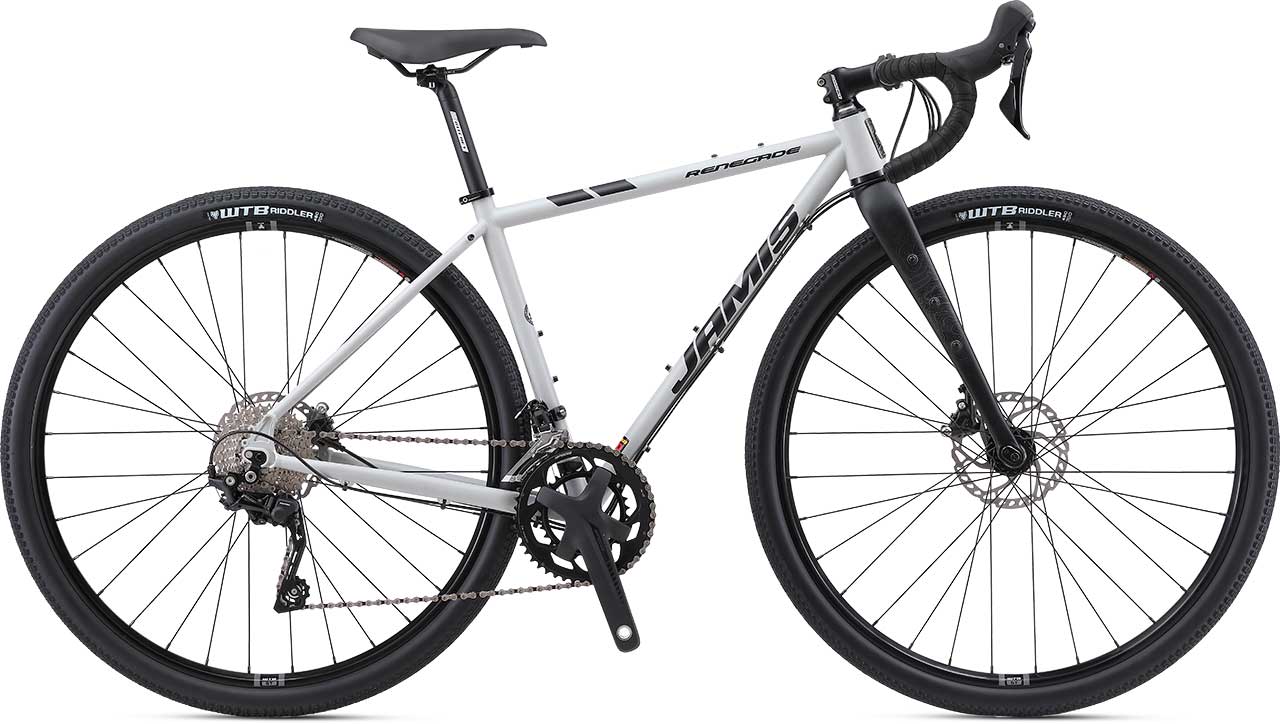

Pure White Kinetic Grey Navy Pearl

RENEGADE S3

レイノルズ520を使用したRenegadeの中で最もハイスペックなモデル。SHIMANO GRX400シリーズをベースにアッセンブルされたコンポーネントは、油圧ディスクブレーキ、スタビライザー付きの10Speedディレイラーは、すべての路面において上質なライドパフォーマンスを発揮する。

ご購入はこちら

OVERVIEW

RENEGADE S3


Price¥253,000（税込価格）

  • Size48, 51, 54, 56, 58, 61cm
  • Frame Reynolds 520 double-butted chromoly tubes, tapered head tube for tapered fork, threaded BB shell, 12mm Thru-axleflat mount chain stay disc brake mounts, internal dropper post ready, 3 waterbottle mounts
  • Fork Monocoque carbon, 12mm Thru-axle, tapered steerer, flat mount disc brakes, lowrider and 3 water bottle eyelets
  • Components Shimano GRX
  • Brakeset Shimano GRX BR-RX400, Shimano 160mm rotors
  • WheelsWTB ST i23 TCS 2.0 rims, alloy 6-bolt hubs, front 12mm/rear 12x142 thru-axle with Switch Lever
  • TiresWTB Nano, 700 x 40c, 30TPI with protection belt
  • WeightN/A
  • SSD
  • REINOLDS
  • ECO

SPECIFICATIONS

MODEL RENEGADE S3
Frame Reynolds 520 double-butted chromoly tubes, tapered head tube for tapered fork, threaded BB shell, 12mm Thru-axleflat mount chain stay disc brake mounts, internal dropper post ready, 3 waterbottle mounts
Fork Monocoque carbon, 12mm Thru-axle, tapered steerer, flat mount disc brakes, lowrider and 3 water bottle eyelets
Headset FSA NO.57/59/CUP, 1.5 - 1 1/8”
Wheels WTB ST i23 TCS 2.0 rims, alloy 6-bolt hubs, front 12mm/rear 12x142 thru-axle with Switch Lever
Tires WTB Nano, 700 x 40c, 30TPI with protection belt
Derailleurs Shimano GRX RD-RX400 Shadow Plus rear and GRX FD-RX400 front with 28.6mm alloy clamp
Shiftlevers Shimano GRX ST-RX400 Dual Control STI, 10-speed
Chain KMC 10-speed X10
Cassette Shimano CN HG500, 10 speed, 11-34T
Crankset FSA OMEGA Modular DM MegaExo, 46/30T, CL 47MM, 165mm (48)170mm (51) 172.5mm (54/56) 175mm (58/61)
BB Set FSA BB-4000 MegaExo
Pedals N/A
Brakeset Shimano GRX BR-RX400, Shimano 160mm rotors
Handlebar Ritchey Baquiano Comp, 31.8 x 420 (48-51) 440mm (54-56), 460mm (58-61)
Stem Ritchey 4-Axis 70mm (48/51), 80mm (54/56), 100mm (58/61)
Tape Jamis suede tape with gel inserts
Seat Post Ritchey Road, 27.2 x 300mm
Saddle Jamis vacuum formed saddle with comfort groove

FIT & SIZING

ジオメトリ表
  • A = SEAT TUBE
  • B = EFFECTIVE TT LENGTH
  • C = HEAD TUBE ANGLE
  • D = SEAT TUBE ANGLE
  • E = CHAINSTAY
  • F = WHEELBASE
  • G = FORK RAKE
  • H = BOTTOM BRACKET DROP/HEIGHT
  • I = HEAD TUBE
  • J = STANDOVER
  • K = STACK
  • L = REACH
MODEL RENEGADE S3
SIZE 48 51 54 56 58 61
cm cm cm cm cm cm
ASEAT TUBE 450 480 510 530 550 570
BEFFECTIVE TT LENGTH 532 547 567 587 604 621
CHEAD ANGLE 71° 71° 71° 71° 71° 71°
DSEAT ANGLE 72° 72° 72° 72° 72° 72°
ECHAIN STAY 435 435 435 435 435 435
FWHEEL BASE 1000 1010 1030 1050 1070 1086
GFORK RAKE 50 50 50 50 50 50
HBB DROP 80 80 80 80 80 80
IHEAD TUBE 80 100 130 162 189 210
JSTAND OVER 731 754 783 808 830 850
KSTACK 527.5 545 575 605 630 650
LREACH 360 370 380 390 400 410
